WEEK 10
March 18th, 2022

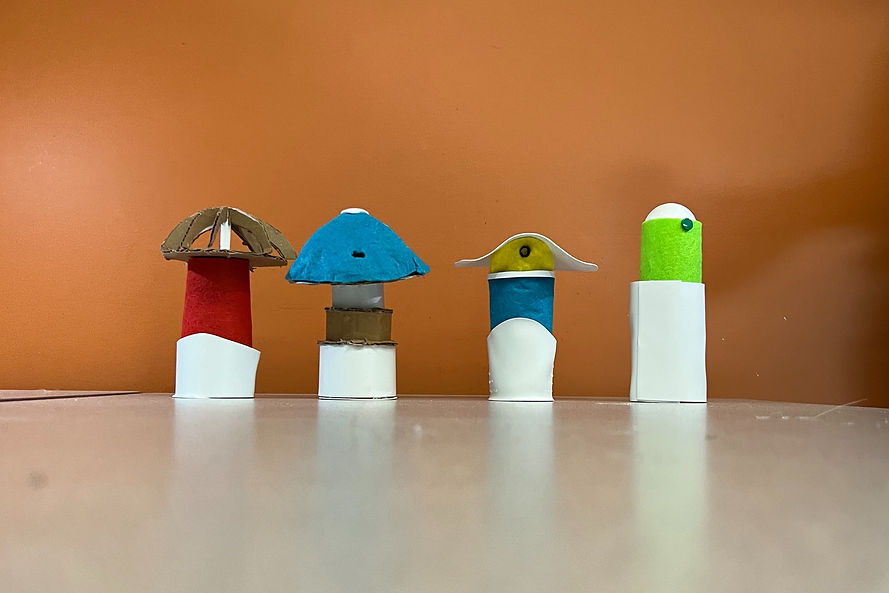

Initial Prototypes
In creating the Week 10 Prototypes, we each took our own approach of our team concept. Some of us integrated the collapsing mechanism by imagining that middle pieces were using wood, while others constructed the idea of using fabric to collapse the camera together. Ideas discussed included incorporating lights, implementation of hiding the camera with a cover and using a telescopic collapsable method.
Nick's
Taylen's
George's
Kai's
Final Product Material Specifications
NYLON
-
Red, thicker fabric
-
Top of webcam
-
Main fabric
BIRCH
-
Cylinder, middle parts
-
Inside Components
-
Lighter wood
TULLE
-
White, knit and netted like
-
Thin fabric
-
Pass through sound easier
-
Integrated on top part
WALNUT
-
Base parts
-
Exterior for darker aesthetic
-
Darker wood
Functionality Update
CONTEXT AND STYLE OF INTERACTION
Tilting
Context Setting
Collapsing
Expanding
Technology Update
As we would like to implement wood into our webcam, we realized that functionality of our prototype only collapsed and expanded due to friction between the cardboard pieces. For our final concept, we are developing our idea to use a rack and pinion mechanic in the interior and a ball hinge on the top to pivot the camera around in different directions.
Division of Labour for Week 11
Trimming and Cutting - Nick and Taylen
Assembly - George
Finishing - Kai
Timetable for Week 11
